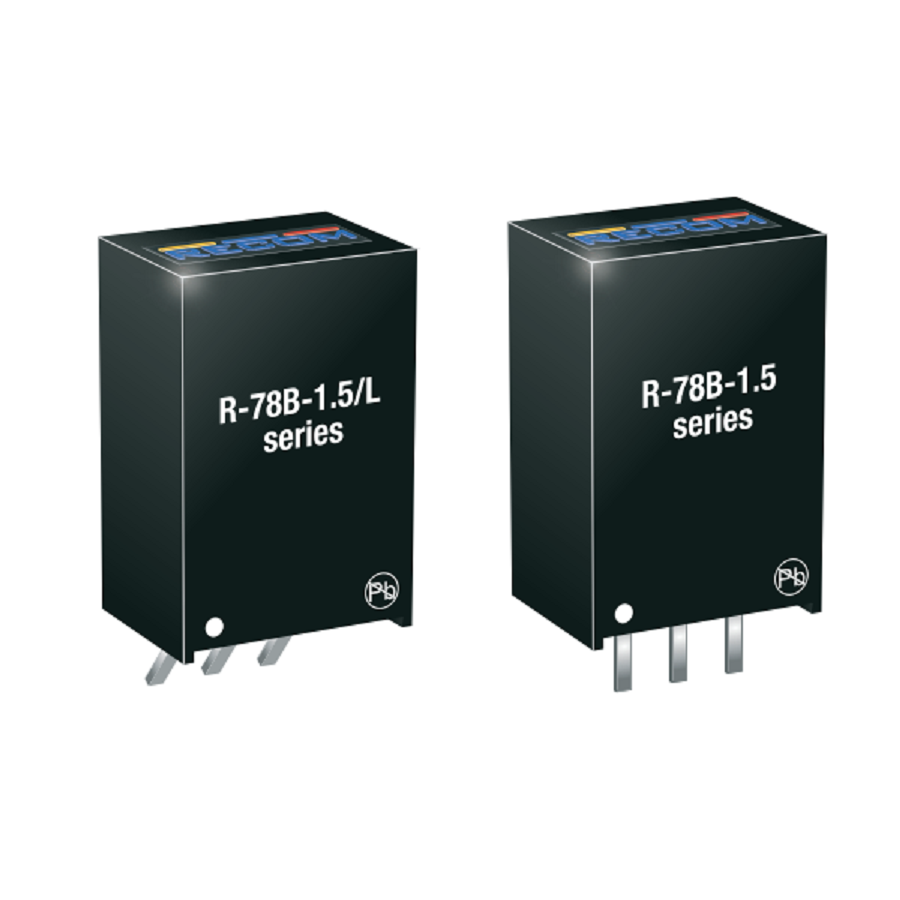

R-78B5.0-1.5L
Manufacturer:
Recom Power
Mfr.Part #:
R-78B5.0-1.5L
Datasheet:
Description:
DC to DC Converters 17.5mmL×11.5mmW×8.5mmH Through Hole Nominal Input Voltage:12 V Min Input Voltage:6.5 V Max Input Voltage:18 V 94 %
| Parameter | Value |
|---|---|
| Length | 11.5 mm |
| Width | 8.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Power Rating | 7.5 W |
| Height | 17.5 mm |
| Packaging | Tube |
| Depth | 11.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 4 g |
| Features | OTP, SCP |
| Min Input Voltage | 6.5 V |
| Output Current | 1.5 A |
| Output Voltage | 5 V |
| Max Power Dissipation | 7.5 W |
| Max Output Current | 1.5 A |
| Max Input Voltage | 18 V |
| Number of Outputs | 1 |
| Isolation Voltage | 2 kV |
| Output Power | 7.5 W |
| Current - Output 1 | 1.5 A |
| Efficiency | 94 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 18 V |
| Nominal Output Voltage | 5 V |
| Nominal Input Voltage | 12 V |
| Max Output Voltage | 5 V |
| Max Output Power | 7.5 W |
| Min Input Voltage (DC) | 6.5 V |
| Isolation | Non-Isolated |
| Schedule B | 8504409580 |
| Output Current-Channel 1 | 1.5 A |
| Output Voltage-Channel 1 | 5 V |
Stock: 95
Distributors
pcbx
pcbxUnit Price$8.11670
Ext.Price$8.11670
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.11670 | $8.11670 |
| 10 | $7.46610 | $74.66100 |
| 25 | $7.27203 | $181.80075 |
| 50 | $6.43334 | $321.66700 |
